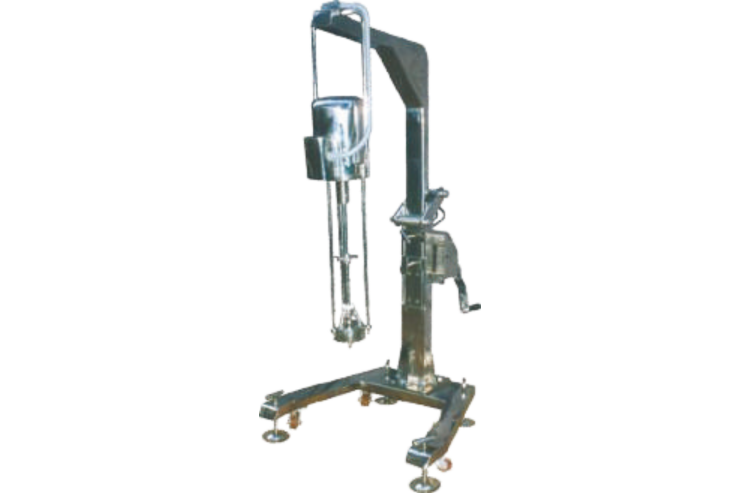

HOMOGENISER

HOMOGENISER

Available Size 3 HP/5HP/10 HP.

Used for Suspension and Emulation etc.

Special arrangement for Mechanical Lifting and Lowering.

Available STD/GMP Model.

Also available various Designs of Homogeniser.

Contact parts SS 316 & Non Contact parts SS 304.

Homogeniser – Overview

A homogeniser is used to reduce particle size and uniformly mix immiscible liquids (like oil & water), ensuring stable, smooth, and consistent products. It is widely used in pharmaceuticals, food & beverage, cosmetics, dairy, and chemical industries.

Typical Homogeniser Specifications (Industrial / Pharma Grade)

🔧 General Specifications

• Type: High Pressure / Inline / Two-Stage Homogeniser

• Application: Syrups, suspensions, emulsions, creams, vaccines, dairy products

• Material of Construction:

  • Product Contact Parts: SS 316 / SS 316L

  • Non-contact Parts: SS 304

• Finish: Mirror polish (Ra ≤ 0.4–0.6 µm) – GMP compliant

⚙️ Technical Specifications

• Capacity Range:

  • Lab Model: 5 – 50 LPH

  • Pilot Scale: 100 – 500 LPH

  • Industrial Scale: 1000 – 10,000+ LPH

• Working Pressure:

  • 100 – 1500 bar (depending on model)

• Homogenising Stages:

  • Single Stage / Two Stage

• Motor Power:

  • 3 HP to 50+ HP

• Operating Temperature:

  • Up to 90°C (higher with special seals)

• Particle Size Reduction:

  • Up to sub-micron level

🧪 Process Features

• Uniform particle distribution

• Improved product stability

• Enhanced texture & appearance

• Increased bioavailability (pharma applications)

🔌 Electrical & Control

• Power Supply: 415V / 50Hz / 3 Phase

• Control Panel:

  • Manual / PLC / HMI based

• Safety Features:

  • Pressure relief valve

  • Overload protection

  • Emergency stop

🧼 Compliance & Standards

• GMP compliant design

• CIP / SIP compatible

• FDA-approved seals & gaskets (optional)
