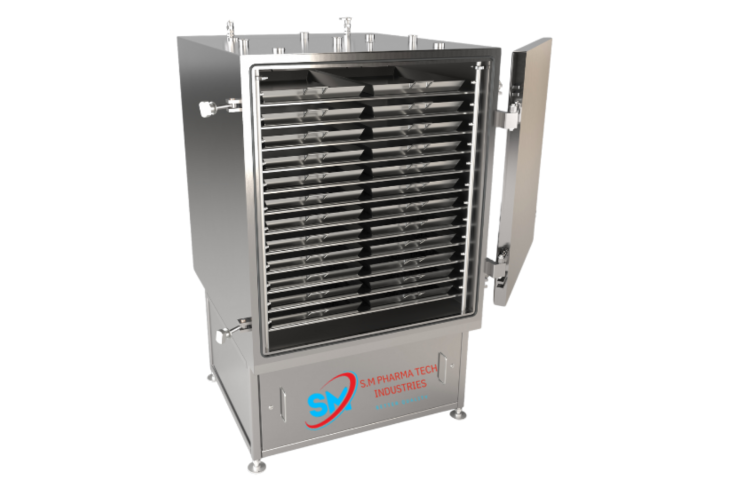

VACUUM TRAY DRYER

VACUUM TRAY DRYER

Available in 6, 12, 24, 48 and 96 tray capacity model.

Designed For Uniform Circulation of hot air in the drying chamber.

Electrical / Steam Heating Arrangement.

Condenser and Receiver.

VTD are available in SS 304/316 Quality.

Available STD/GMP Model.

PLC Operation (Optional).

📌 What a Vacuum Tray Dryer Is

A vacuum tray dryer is a batch drying machine with a sealed vacuum chamber containing stacked heated shelves and removable trays. Reduced pressure lowers the boiling point of moisture, enabling drying at lower temperatures — ideal for heat-sensitive and oxygen-sensitive products. (Powder Systems Ltd)

📊 Typical Specifications (Industrial / Laboratory)

🔧 Construction

• Chamber Material: Usually stainless steel (SS-304, SS-316, SS-316L) for corrosion resistance & cleanability. (shivshaktiequipments.com)

• Heating Shelves: Hollow pad type with internal baffles for uniform heat distribution. (blenderindia.net)

• Doors: Heavy duty with silicone gasket for vacuum tightness. (ellayymotors.in)

• Finish: Internal mirror polish; external matt polish (varies by supplier). (ellayymotors.in)

📐 Mechanical & Operating Parameters

🔍 Performance & Usage Notes

• Capacity: From a few kilograms up to hundreds, depending on trays & chamber size. (RAVI INTERNATIONAL)

• Heating Efficiency: Uniform heat via shelves improves drying consistency. (Powder Systems Ltd)

• Vacuum Operation: Lowers boiling point of moisture → faster drying and protects sensitive products. (Powder Systems Ltd)

• Industries: Pharmaceuticals (APIs), chemicals, food, nutraceuticals; also labs and pilot plants. (ADVANCED EXPERTISE TECHNOLOGY PVT. LTD.)

🧰 Example Size/Model Details (illustrative)

From one manufacturer’s typical table: (RAVI INTERNATIONAL)
