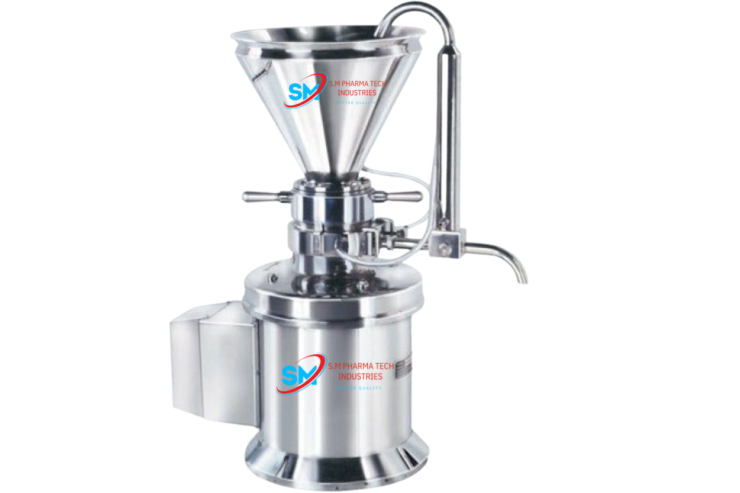

COLLOID MILL

COLLOID MILL

Model 3 HP & 5 HP.

Output 120 to 12,000 kg/shift (Depends on the product)

Colloid Mill is suitable for Homogenising, Emulsifying, Dispersing mixing.

Contact parts SS 316 & Non Contact parts SS 304.

Available STD / GMP Model and Special 20 HP Model.

📌 What a Colloid Mill Is

A colloid mill reduces particle size and homogenizes liquid mixtures by applying high shear between a rotor and stator, making it ideal for emulsifying, grinding and mixing suspensions and viscous products in food, pharma, cosmetics, chemical, and related industries. (Wikipedia)

📘 Typical Specifications (Industrial/Pharma/Process Models)

Basic parameters you’ll commonly see across models:

➤ Performance & Capacity

• Output range: ~150–5000+ L/hr (lab → industrial) depending on model & viscosity

• Particle size reduction: ~5–10 µm typical for fine dispersion applications

• Flow range: Some industrial types span ~150–34 000 L/hr (depending on configuration)

➤ Mechanical & Drive

• Rotor speed: ~2800–5760 RPM (varies by gearbox & model)

• Motor power: ~1.5 kW / 2 HP up to 30 kW+ depending on capacity

• Drive options: Vertical or horizontal drives available

➤ Construction

• Material of contact parts: SS316 / SS316L (sanitary/pharma food-grade)

• Frame & non-contact parts: SS304 or similar corrosion-resistant steel

• Seal types: Rubber silicon or mechanical seals for leakage control

➤ Feed & Features

• Hopper capacity: Often ~3–15+ L for small/medium units

• Adjustable rotor-stator gap: Helps control final particle size

• Optional water cooling: For heat-sensitive products

• Re-circulation pipe & three-way valve: For finer processing or continuous operation

Highlights

• Heavy Duty Semi‑Automatic Colloid Mill and Plant – Higher capacity industrial unit, versatile for sauces, pastes, ketchup, peanut butter, etc.

• Colloidal Mill Machine & Colloidal Mill – Mid-range colloid mills good for general processing.

• Stainless Steel GMP Model Colloid Mill Machine – Sanitary design for food/pharma use.

• Colloidal Mill Machine (Lab) – Compact, lower-capacity option for lab/R&D
