P.V.C. Coated Canvas Belt ( 4 ^ prime prime ,6^ prime prime ,9^ prime prime 8 12^ prime prime width).
Topside consist of S.S.Top or Sunmica Тор.
Size 6 ft. to 30 ft length.
Variable speed arrangement also available (Optional).
Contact parts SS 316 & Non Contact parts SS 304.

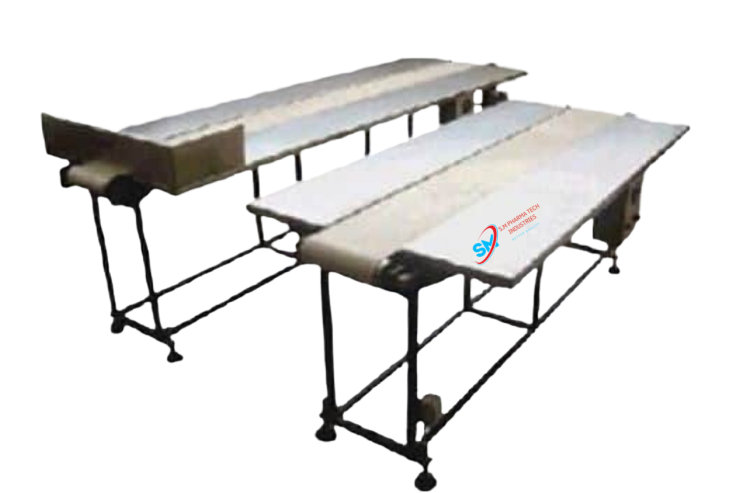

📌 What a Packing Belt Conveyor Is
A packing belt conveyor is a type of motor-driven conveyor used in packaging lines to move goods (boxes, bottles, containers, etc.) between stations — for inspection, sorting, labeling, sealing, boxing, and other packing tasks. The belt is usually continuous and flat, but can be modular or food-grade depending on your application.
⚙️ Typical Specifications
Basic Size & Structure
Belt width: 9″ or 12″ (custom widths available)
Conveyor height: ~860 mm to ~910 mm adjustable
Length: Customizable to your workspace / process needs
Frame material: Mild steel or stainless steel (often SS304 or SS316L for hygiene)
Belt Material Options
PVC belt (standard) – economical, general purpose
PU or modular plastic belt – wash-down or food-grade applications
Endless belt design (loop without joins) recommended for reliability
Drive & Performance
Motor: Typically 0.25 HP – 0.75 HP (based on length and load)
Voltage: 220 V / 50 Hz or 440 V three-phase options available
