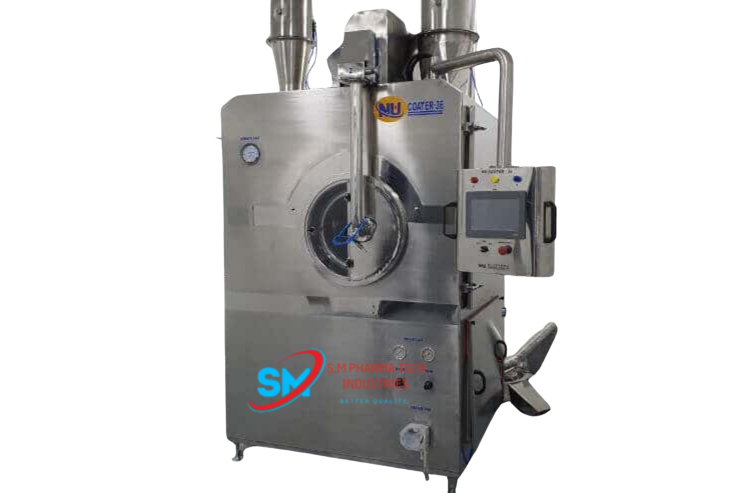

Images are representative of common pharma auto coaters with rotating pan, spray system, hot air circulation, and control panel.
🧠 What an Auto Coater Does
An auto coater is a machine used especially in pharmaceutical, food, and confectionery industries to apply coatings (film, sugar, enteric, aqueous, organic) on tablets, pills, pellets, or candies. It automates the spraying and drying process to achieve a uniform, smooth, and controlled film layer.
How it works (in brief):
The product batch is placed in the rotating coating pan or drum.
Spray guns/nozzles apply the coating liquid evenly as the pan rotates.
Hot, filtered air flows through to dry and fix the coating quickly.
The process is usually managed by PLC controls for precision.
🔍 Typical Specifications (Pharma Auto Coaters)
Feature
Typical Values / Range
Pan Diameter
~610 mm to 1675 mm (24″ – 66″) — multiple models available )
Working Capacity
~10 kg up to 500 kg+ (depends on model) )
Control System
PLC-based automation
Drive Power (Motor)
~1 HP – 10 HP (varies with size) ()
Hot Air Blower
~1 HP – 10 HP with corresponding CFM capacity )
Air Handling
Hot, filtered air for drying with exhaust and dust collection
Construction Material
Stainless steel (SS316/SS316L ideally)
Coating Types Supported
Film, sugar, aqueous, organic, enteric
📎 Useful Features to Look For
✔ Automated PLC control for accurate spray and air parameters. ✔ Adjustable pan speed & spray rate for different products. ✔ Efficient hot air system with good filtration. ✔ Easy cleaning / CIP system for hygiene. ✔ GMP compliance for pharma production.
