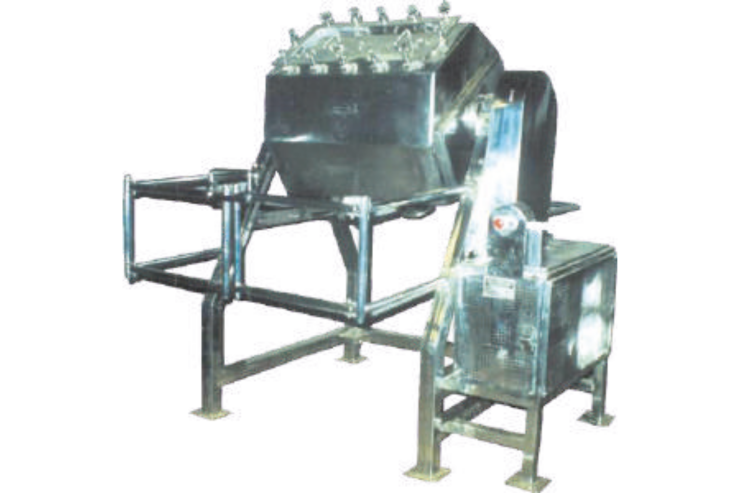

An Octagonal Blender is a slow-tumbling industrial machine used to homogeneously blend dry powders and granules (common in pharmaceutical, food, chemical, and cosmetic industries). Its octagon-shaped drum promotes gentle, efficient mixing with minimal degradation of particles.
It tumbles contents slowly so materials cascade through all octagon sides.
Shape and motion encourage thorough mixing with low RPM and gentle action.
Often built with stainless steel contact parts for hygiene & easy cleaning.
📊 Typical Specifications (Examples)
Specifications vary by model and manufacturer, but here’s a sense of common features and capacities:
⚙️ Standard Technical Specs (Example Models)
Model / Capacity
Gross / Working Volume
RPM Range
Motor
Discharge
OCB 100
100 L / 60 L
5–22
~1.5 HP
3″–4″
OCB 200
200 L / 120 L
2–16
~2 HP
4″–6″
OCB 500
500 L / 300 L
2–12
~3 HP
6″–8″
OCB 1000
1000 L / 600 L
1–8
~5 HP
8″–10″
OCB 1500 / 2000
1500–2000 L Range
~1–6
7.5–10 HP
10″–12″
(Values are representative from manufacturer ranges; details may vary by maker and model.)
🧰 Common Features
✅ Octagonal Vessel Shape – promotes material flow from all sides ✅ Low RPM Slow Mixing – gentle on particles, prevents damage ✅ Stainless Steel Construction – SS304/SS316 contact parts ✅ Butterfly Valve at Discharge – for controlled emptying ✅ Bin or Vacuum Charging – optional dust-free material loading ✅ Easy Cleaning & GMP Design – smooth surfaces, removable baffles
