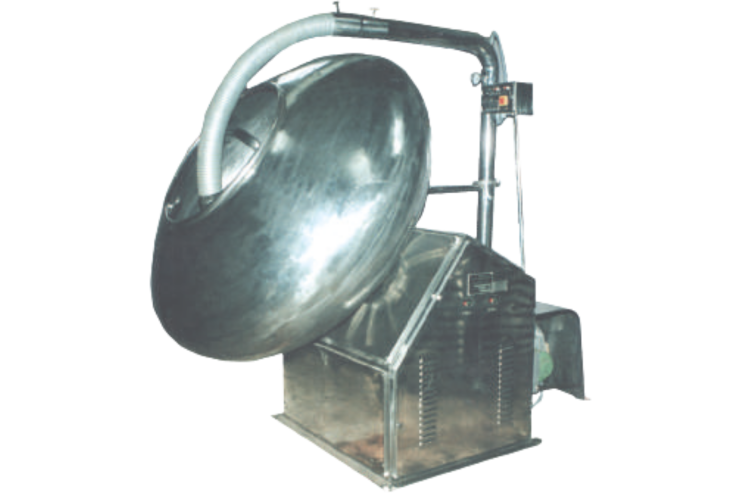

COATING PAN

COATING PAN

(Also Available Polishing Pan)

Uniform Surface Coating

Provided with hot Air Blower.

Contact parts SS 316 & Non Contact parts SS 304.

Available Size: 12", 18", 24", 36", 42", 48", 60", 72".

Available STD/GMP Model and Lab Model.

Coating Pan (Pharmaceutical) – Overview & Specifications

A Coating Pan is used in pharmaceutical manufacturing to apply a uniform coating on tablets, pills, or pellets for protection, taste masking, controlled release, or improved appearance.

🔧 Standard Specifications (Typical)

1. General Construction

• Material of Construction (MOC):

  • Contact Parts: SS 316 / SS 316L

  • Non-contact Parts: SS 304

• Finish: Mirror polish (Ra ≤ 0.4–0.6 µm)

• GMP Compliance: Yes

2. Capacity Range

3. Pan Details

• Pan Type: Conventional / Perforated

• Pan Shape: Circular / Octagonal

• Pan Diameter: 300 mm – 2000 mm (model dependent)

• Pan Speed: Variable (5–20 RPM)

• Drive: AC motor with VFD

4. Heating & Air System

• Heating Type: Electric / Steam / Hot Air

• Air Handling Unit: Optional / Integrated

• Exhaust System: With dust collector / scrubber

• Temperature Range: Ambient to 80–90°C

5. Spray System

• Spray Guns: 1–4 (or more for large models)

• Pump Type: Peristaltic / Pneumatic

• Spray Control: Adjustable flow & atomization

• Nozzle Type: Anti-bearding, SS construction

6. Control Panel

• Control Type: PLC / Semi-automatic / Manual

• HMI: Touch screen (optional)

• Parameters Displayed:

  • Pan speed

  • Inlet air temperature

  • Exhaust air temperature

  • Spray rate

7. Electricals

• Power Supply: 415 V, 3 Phase, 50 Hz

• Safety Features:

  • Emergency stop

  • Door interlock

  • Overload protection

8. Optional Attachments

• Solution preparation tank

• CIP system

• Dehumidifier

• Flameproof motor (if required)

✅ Applications

• Film coating

• Sugar coating

• Enteric coating

• Controlled release coating
