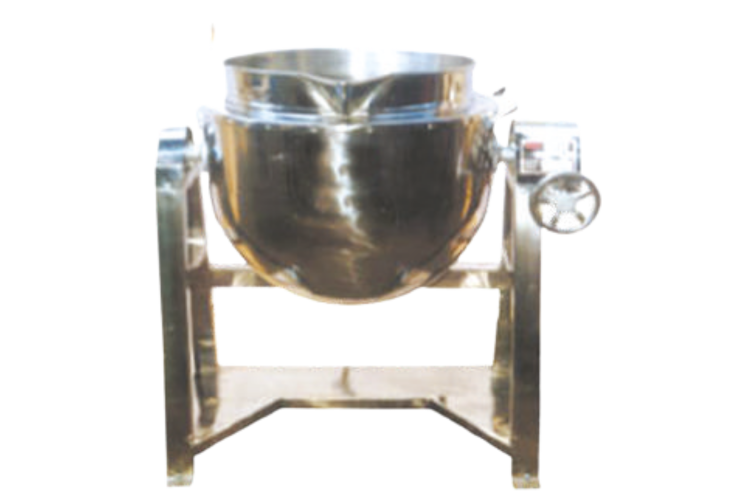

A starch paste unit (often referred to as a starch paste kettle or paste kettle) is an industrial mixing and heating vessel designed to prepare starch paste or binder solutions for processes like wet granulation, food processing, adhesives, and cosmetics. It typically has a jacketed bowl for heating and an agitator for uniform mixin
🛠️ Typical Specifications
🔹 Main Design Features
Jacketed heating system (steam, electric, thermal oil) for controlled heating of the starch slurry.
Hemispherical bowl shape for even heat distribution and efficient mixing.
Tilting arrangement to discharge paste easily.
Stainless steel construction (SS304 / SS316 / SS316L) for corrosion resistance and GMP compliance.
Agitator (anchor or PTFE scraper type) to prevent lump formation.
📊 Typical Technical Specifications
Parameter
Values / Options
Capacity range
~50 L to 1000+ L (varies by model)
Material of construction
SS304 / SS316 / SS316L
Heating types
Steam / Electric / Oil / Gas
Agitator type
PTFE scraper / Anchor stirrer
Motor power
~0.55 kW up to 7.5 kW (depending on size)
Control
Digital temperature controller & indicator
Finish
Mirror polished inside & outside
Voltage
Typically 220–415 V (depending on model)
Standards
DIN / 3A / cGMP options
📌 Typical Applications
Preparation of starch binders for tablets and granulates in pharma production.
Cooking starch paste for food and dairy processing.
Mixing and heating pastes in cosmetic or adhesive applications.
